Channel Drain

Select Category

EasyFlow Channel

Low profile channel external depth only 78mm internal channel 40mm
Engineered feet to help levelling and reduces floating if the channel is being set in concrete
no special tools needed to assemble and easy to cut or mitre
1 metre long comprises of x2 500mm long sections for convenience
A15 Loading
Measuring 1000(L) x 125(W) x 78(H)mm

VIP 110mm Domestic Channel Drainage

Slip resistant and heel guard.
Concave design and deeper outlet for improved flow.
No locking bars required, with 80mm internal depth
Grate is easily removed with a flat head screwdriver
A15 Load rating – Tested to BS EN 1433:2002.
Measuring 1000(L) x 115(W) x 127(H)mm

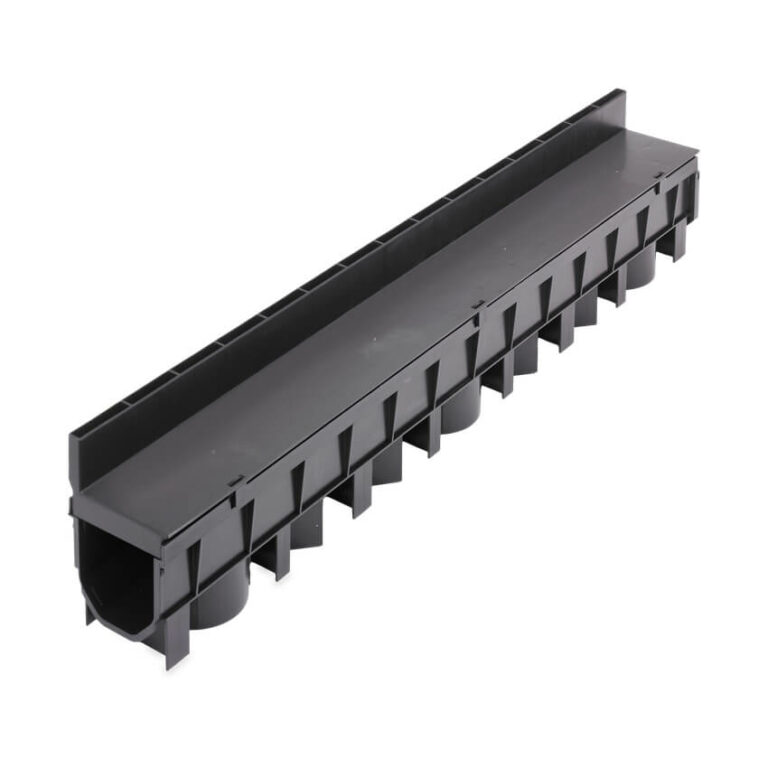

VIP Slot Drain Threshold Channel

Threshold for use at front doors or bi-folding doors
Low visual impact
allows installation to conform to Part M of the Building Regulations
A15 Load rating – Tested to BS EN 1433:2002
Measuring 1000(L) x 115(W) x 135(H)mm with 50mm upstand for easy laying

Metal edged Slot Drain Threshold Channel

A cost effective Metal Edge Slot Drain for the domestic patio and driveway market
The 82mm upstand ensures the paving has enough space for a securing bed of mortar
Designed with an ovoid shape, creating a dry weather channel
For use as an A15 or B125 loading
Measuring 1000mm (L)x167mm (H)x 98mm (W) with an 82mm upstand for easy laying.

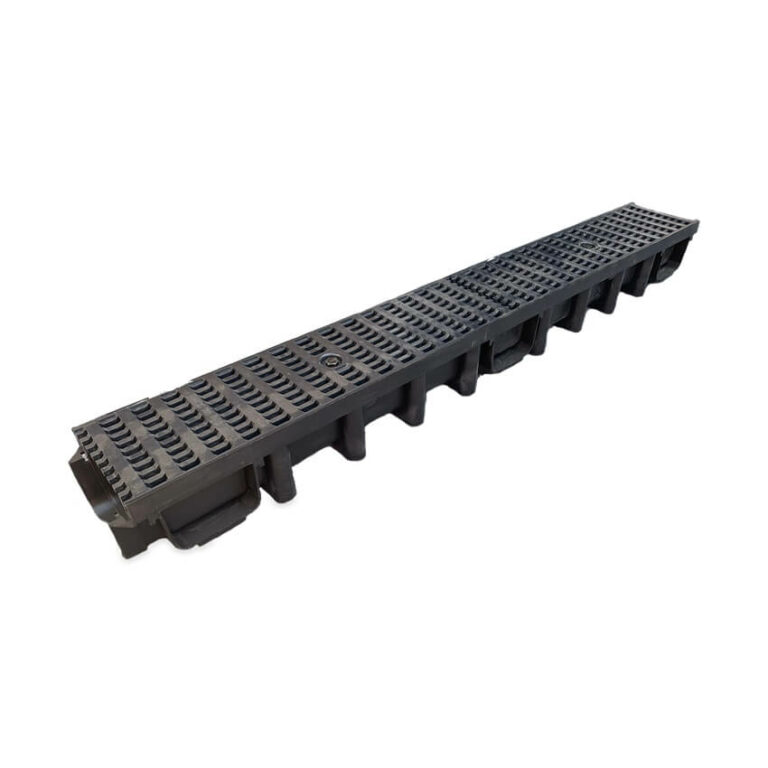

Eezee B125 Domestic Channel Drainage

No corner quads required
Each length features three connection points on each side of the channel body
All plastic super strong and slip-proof with heel protection grid profile
B125 Load rating for heavier cars or vans
Measuring 1000(L) x 131(W) x 98(H)mm

LiteAqua Channel Drainage

one of the shallowest channels on the market, external depth 55mm internal depth 40mm
lightweight design combined with the smooth material allows for efficient drainage solution.
Housed inside the corner units are Foul Air Traps to stop bad smells
Composite, Steel & Ductile Iron gratings available,
A15 Loading
Measuring 1000(L) x 120(W) x 55(H)mm
